Mod Kit – RGB RCA with Horizontal (H-Pos) Adjustment

15kHz RGBS Input for CRT TVs & Sony PVM Monitors

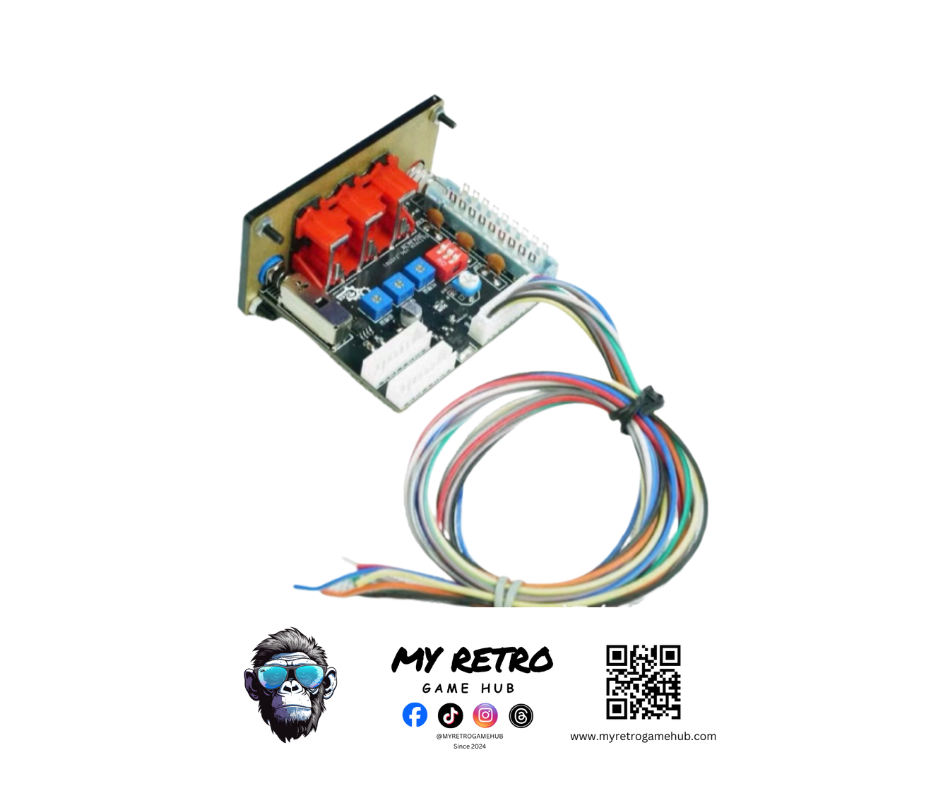

Upgrade your CRT with true native RGB picture quality using this RGB RCA mod kit with built-in horizontal position (H-Pos) adjustment. Designed for 15kHz RGBS signals, this kit delivers sharp, vibrant visuals from retro consoles and arcade hardware — with no scaling, no lag, and no signal conversion.

This version uses RCA (lotus) connectors for RGBS input and includes onboard controls for fine-tuning image position and colour levels.

✨ Key Features

• Native 15kHz RGBS input
  Pure RGB signal path — not an upscaler and not compatible with 31kHz / 480p sources.

• RGB via RCA (Lotus) connectors
  Supports RGB + composite sync (CSYNC / composite video sync).

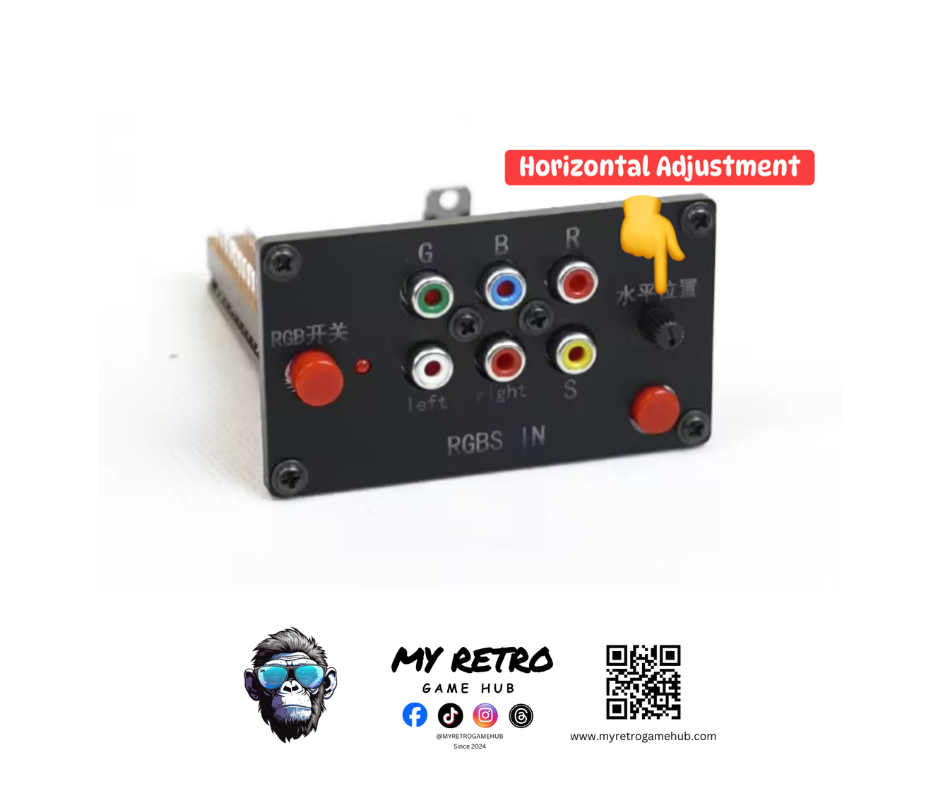

• Built-in Horizontal Position (H-Pos) Adjustment
  Allows left/right image centering directly from the board, without relying solely on the TV service menu.

• Independent RGB Gain Controls
  Onboard trim potentiometers for R, G, and B channels allow precise adjustment of colour balance, brightness, and contrast.
  RGB termination is handled on the board — no external 75Ω resistors required.

• Clean, Stable Signal Design
  Includes proper signal conditioning to minimise noise, smearing, and interference when installed correctly.

• No External Power Supply Required
  Takes 9–12V input from the TV chassis, regulated onboard to 5V where required for control circuits.

• Pre-assembled & Professionally Built
  Comes ready for installation with wiring harness and mounting hardware for a tidy, professional result.

📺 Compatibility

✅ Compatible with:

• Sony PVM monitors

• Consumer CRT TVs manufactured before ~2000

• CRTs with RGB-capable jungle / decoder chips

• Retro consoles and arcade boards outputting 15kHz RGBS

❌ Not compatible with:

• CRTs using late-era “super IC” designs without RGB input pins

• 31kHz / 480p VGA sources

• Flat-panel or digital displays

If you’re unsure about your TV’s compatibility, feel free to contact us before purchasing.

• Check the Sunthar’s moddable CRT list here for compatibility

🔧 Installation Notes (IMPORTANT)

• Installation requires soldering to the TV mainboard

• Uses a 9-line RGB ribbon cable (18-pin IDC: signal + ground pairs)

• Intermediate to advanced skill level recommended

⚠️ RGB Capacitor Compatibility Note

Some CRT chassis already include RGB coupling capacitors on the mainboard.
This kit also includes its own signal conditioning components.

On certain TVs:

• Using both capacitor paths together can cause ghosting or smearing

• In these cases, a solder jumper on the kit must be bridged to bypass the onboard capacitors and rely on the TV’s original circuitry

This is TV-dependent and not required for all models.

📦 What’s Included

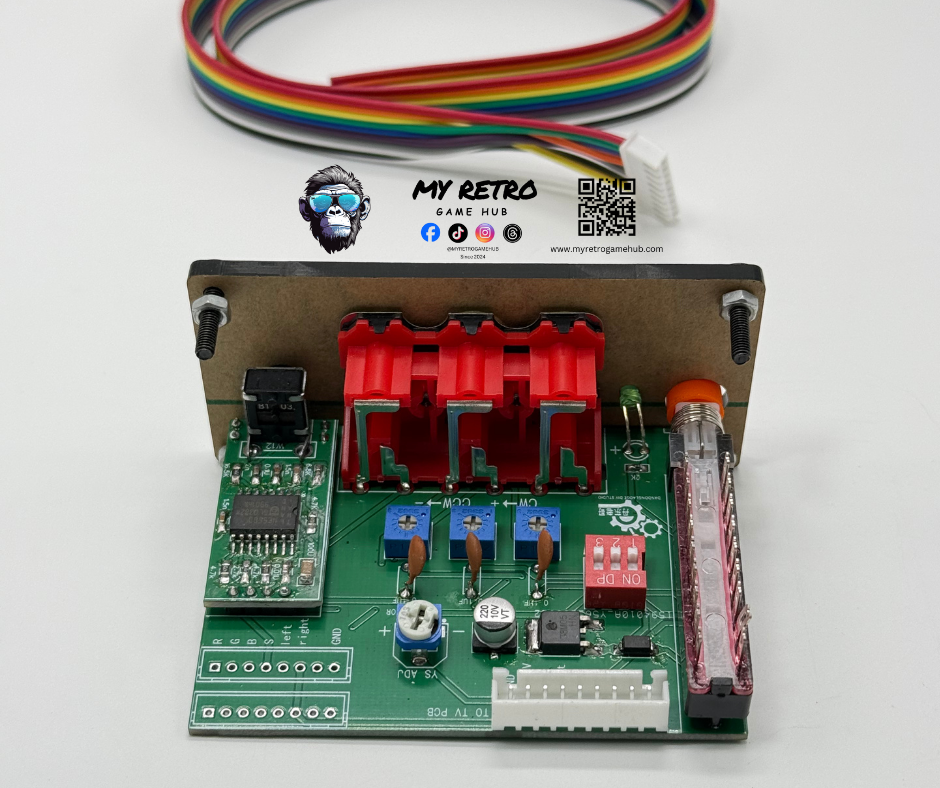

• RGB RCA mod PCB with H-Pos adjustment

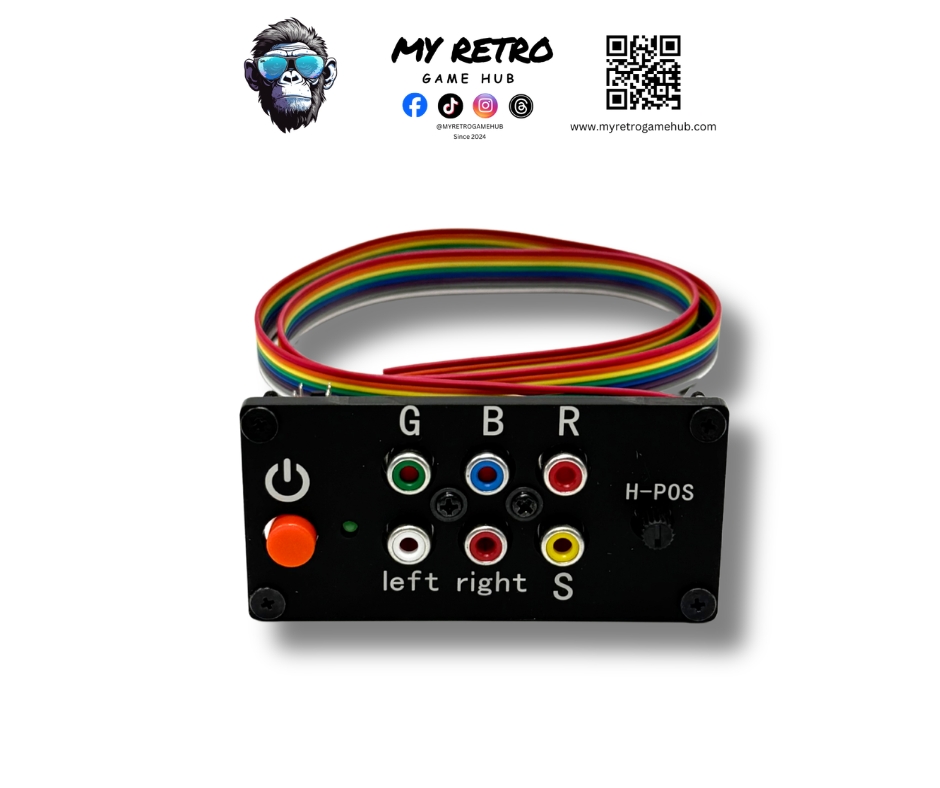

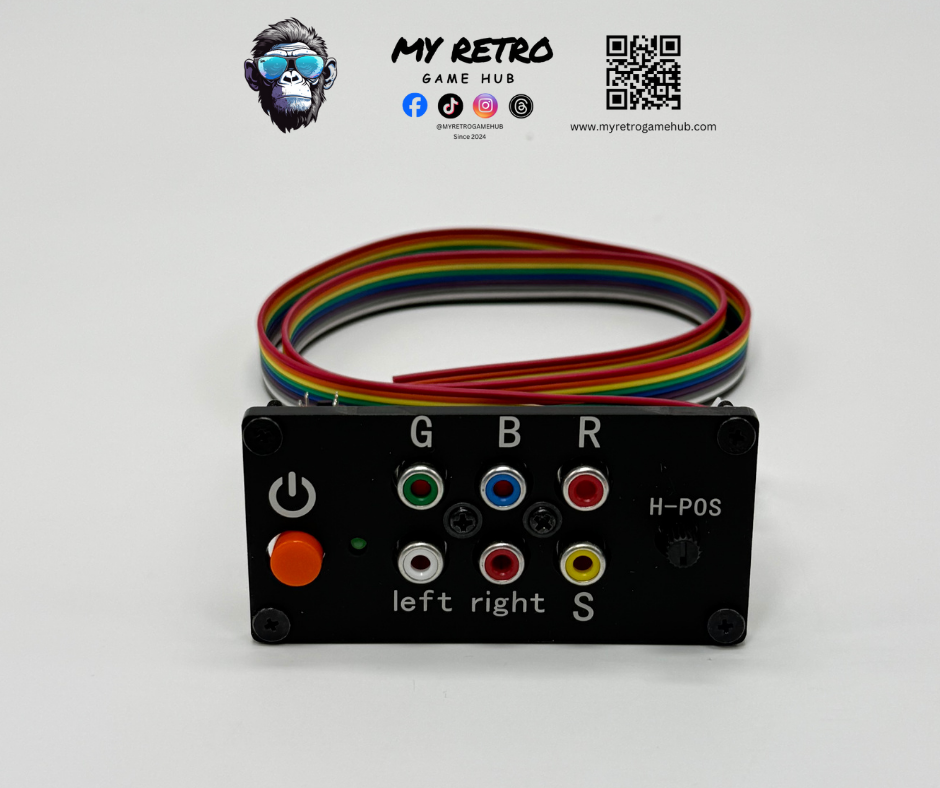

• RCA input panel

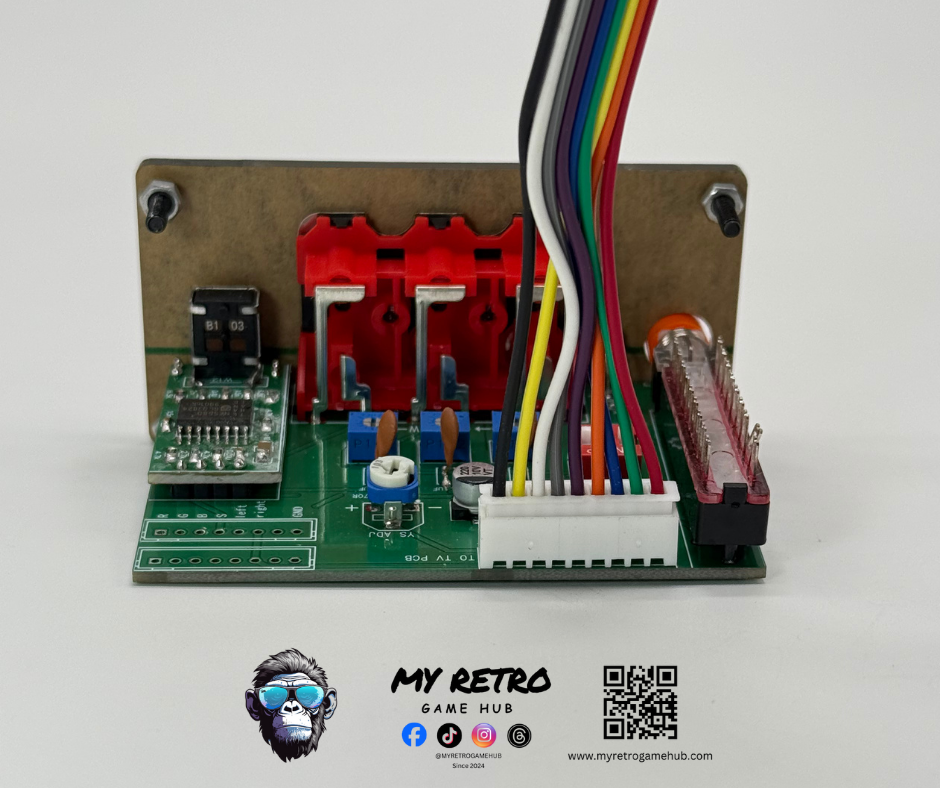

• Pre-wired RGB ribbon cable

• Onboard RGB gain and brightness controls

• Mounting hardware

⚠️ Important Information

• This is a modification kit, not plug-and-play

• Accepts 15kHz RGBS only

• Incorrect installation may permanently damage your CRT

• No refunds for change of mind

• Refunds or replacements apply only if the kit is faulty

🎮 Who This Is For

This kit is ideal for CRT and PVM enthusiasts who want:

• The cleanest possible RGB image

• Fine control over colour and geometry

• A reliable, professional-grade RGB mod solution

Built by experienced RGB modders and tested on real hardware.

Please read the full description below to ensure your CRT is compatible for RGB modding before placing an order. Refunds are only provided for faulty kits — change of mind returns are not accepted.
