Matrix Switch RGB RCA 5-In / 2-Out

RGBS-RCA Matrix 5×2 RGB Switch with Dual MD Outputs (Cable Included)

High-quality RGB switch box designed for retro consoles, arcade hardware, and CRT displays. It lets you connect up to five RGBS RCA sources and route them cleanly to two outputs without constantly swapping cables.

Built with retro gamers in mind, this unit delivers a stable, clean 15kHz RGB signal while preserving signal integrity and protecting your CRT setup.

What It Does

• Connect up to 5 RGBS RCA input sources

• Output to 2 simultaneous displays

• Switch inputs via front-panel buttons

• Supports RGBS over RCA (15kHz) – no scaling, no conversion

• Designed for CRT TVs, Sony PVMs/BVMs, and arcade monitors

Perfect for multi-console setups, capture + display configurations, or running one console to two CRTs.

Key Features

• 5× RGBS RCA Inputs
  Supports RGBS via standard RCA (R/G/B/Sync) connectors.

• 2× Outputs (Dual Display Support)
  Includes:

  • RGBS RCA output

  • Dual MD (Mini-DIN) outputs for compatible displays
    (Both MD outputs are active and usable)

• Independent RGB Gain Adjustment
  Fine-tune R, G, and B levels individually for accurate colour balance.

• Horizontal Position Adjustment (H-POS)
  Front-panel H-POS control allows easy image centering without diving into service menus.

• Built-In Signal Conditioning
  Clean, stable sync handling for flicker-free CRT output.

• Main Power Switch
  Easily power the unit on/off without unplugging.

Build Quality

• 4mm matte black acrylic enclosure

• Scratch-resistant and fingerprint-resistant finish

• Solid, professional assembly

• Compact footprint for tight retro setups

Power

• 9–12V DC input

• Includes DC power adapter

• No external converters or upscalers required

Ideal For

• • Retro consoles (NES RGB mods, SNES, Mega Drive, PS1, Saturn, etc.)

  • Sony PVM / BVM monitors and all CRTs

  • Arcade boards and superguns

  • Multi-CRT or capture/display setups

Included in the Box

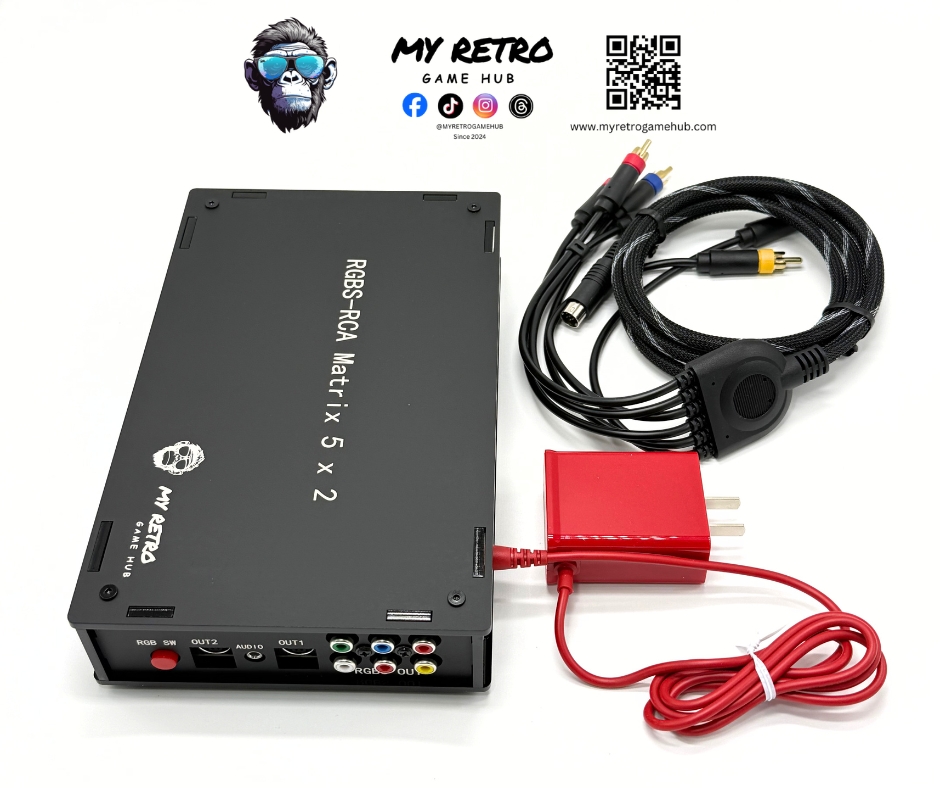

• RGB-RCA Matrix 5×2 Switch Box

• MD RGB RCA cable (included, as shown in photos)

• DC power adapter

• Ready to use out of the box

Important Notes

• This is NOT an upscaler

• Supports 15kHz RGB only

• Designed for CRT displays and professional monitors

• Ensure your consoles output true RGBS

The item will be shipped from Australia.
