Mod Kit – RGB SCART with Horizontal (H-Pos) Adjustment

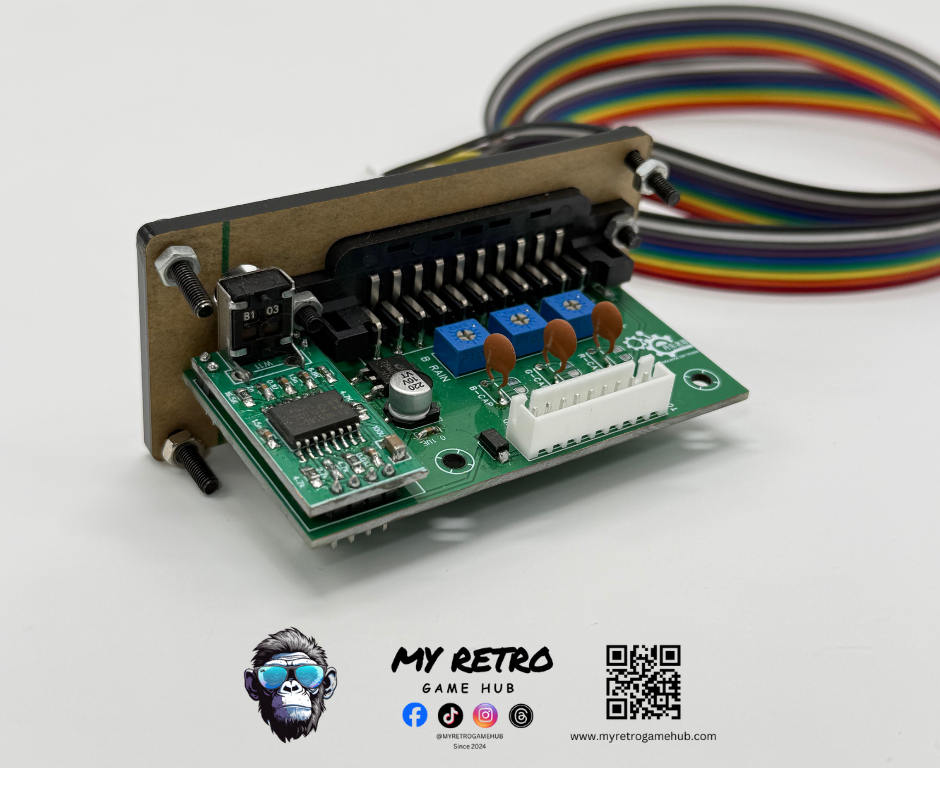

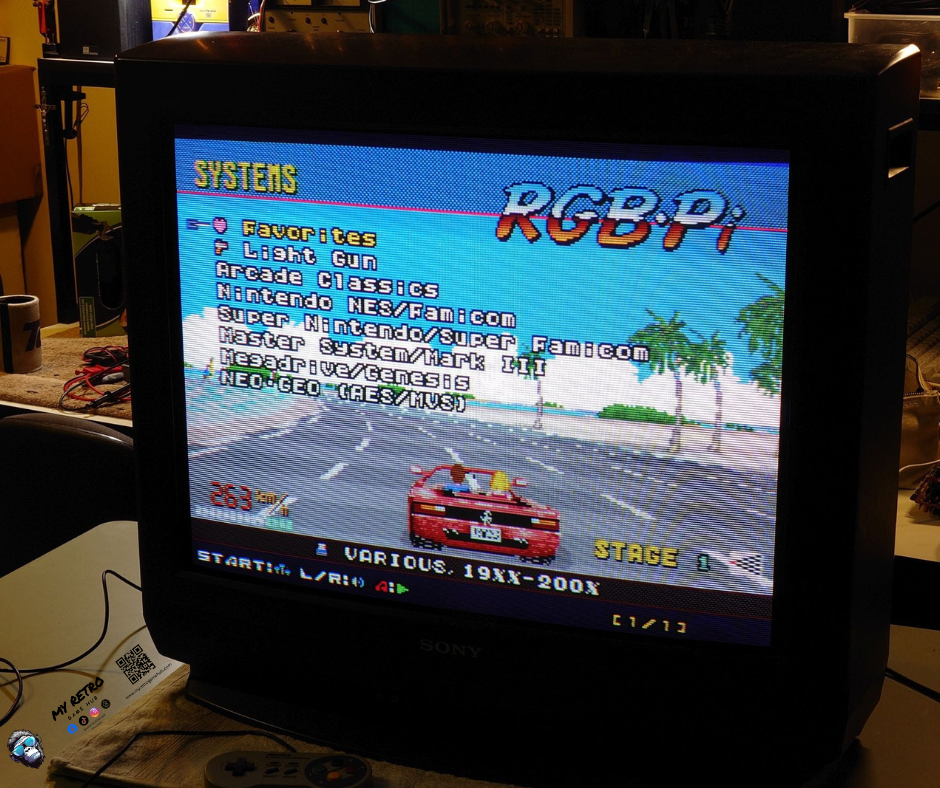

This SCART RGB mod kit is designed for CRT TVs and PVMs that support native RGB input, providing a clean and flexible RGBS SCART (EU) input with horizontal position (H-POS) adjustment built directly into the board.

It is a pure 15kHz RGB solution — not an upscaler — ideal for retro consoles outputting native RGB.

🔧 Key Features

• SCART RGBS Input (EU standard)

  • Supports RGB + composite sync (CSYNC / composite video sync)

• Built-in H-POS (Horizontal Position) Adjustment

  • Fine-tune left/right image positioning

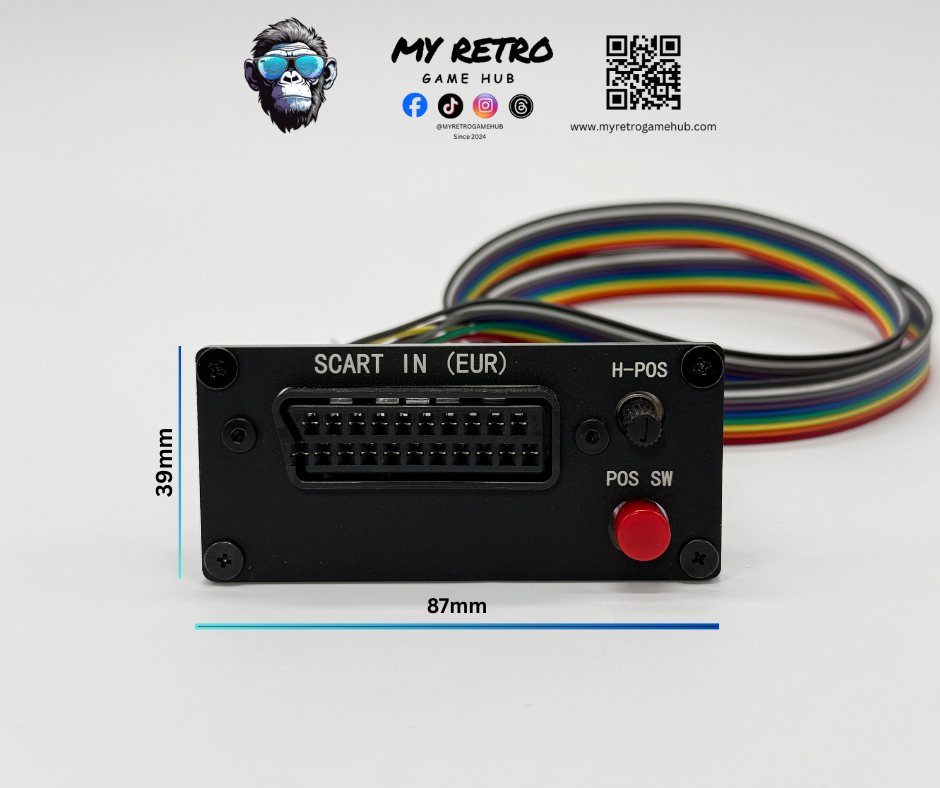

  • Includes physical H-POS adjustment knob and position switch

• Onboard RGB Gain Pots

  • Individual R / G / B gain adjustment

  • Handles RGB termination internally

  • No additional 75Ω resistors required

• Fast Blanking via SCART Pin 16

  • Uses SCART 5V and onboard resistor network

  • Automatically drops to ~1.5V–2V under load

  • Verified safe and within RGB blanking spec

• Clean Signal Path

  • Designed to avoid double-capacitor conflicts

  • In some chassis (e.g. BG-1S), a jumper pad may need to be shorted to bypass redundant capacitors

⚡ Power Requirements

• 9–12V DC input

  • Taken from the TV chassis

  • Feeds the onboard 5V voltage regulator

• The regulated 5V powers:

  • H-POS adjustment circuit

  • Control logic

⚠️ The 9–12V pin is an input, not an output.

📺 Compatibility Notes (IMPORTANT)

• Designed for CRT TVs / monitors with RGB-capable jungle ICs

• Works with:

  • Sony PVM / BVM

  • Consumer CRTs with RGB mod potential

• Not compatible with:

  • TVs without RGB-capable decoder chips

  • Digital / flat-panel displays

Some chassis (such as Sony BG-1S) may already contain:

• Existing RGB termination resistors

• Coupling capacitors on RGB lines

In these cases, a solder jumper on the kit may need to be bridged to disable the kit’s capacitors and avoid signal smearing or ghosting.
(Confirmed during real-world testing and troubleshooting.)

• Check the Sunthar’s moddable CRT list here for compatibility

🛠 Installation Skill Level

Intermediate to Advanced

• Requires soldering to the TV mainboard

• Knowledge of RGB injection points is required

• Not recommended for beginners

👉 If you are unsure, have a qualified CRT technician perform the installation.

📦 What’s Included

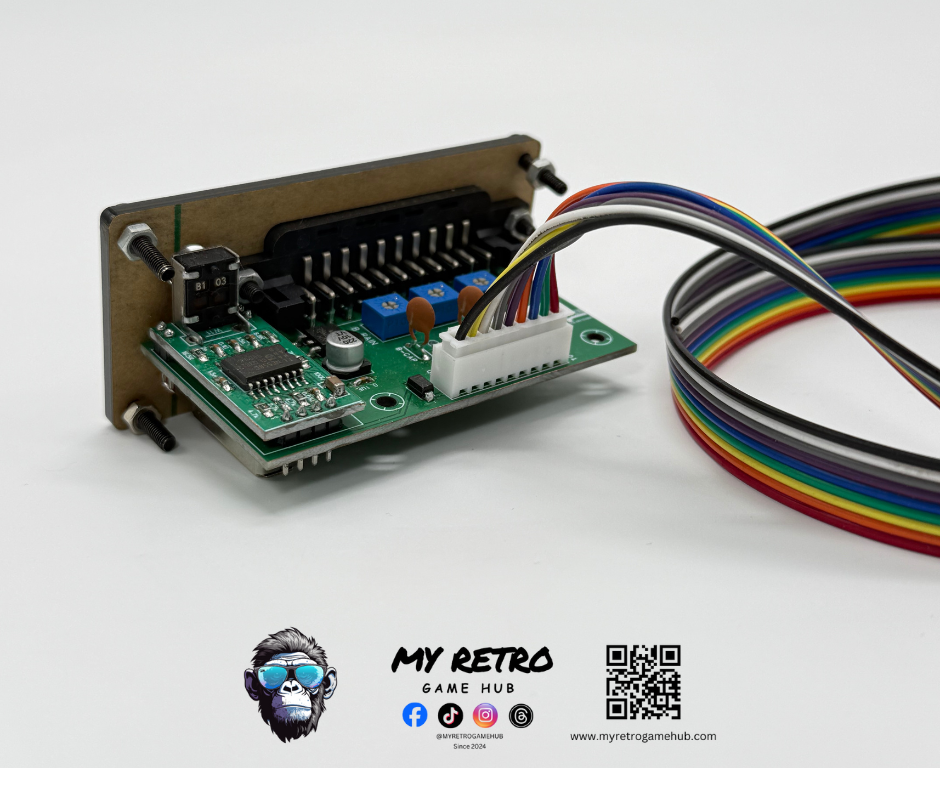

• SCART RGB mod PCB with H-POS adjustment

• SCART (EU) socket mounted to panel

• RGB ribbon cable

• Pre-installed gain pots & regulator

Important Notes

• The kit is not a scaler. It only enables direct RGB input (15kHz), not upscaling to higher resolutions.

• Picture adjustments (H-Pos, geometry) may require using your TV’s built-in service menu.

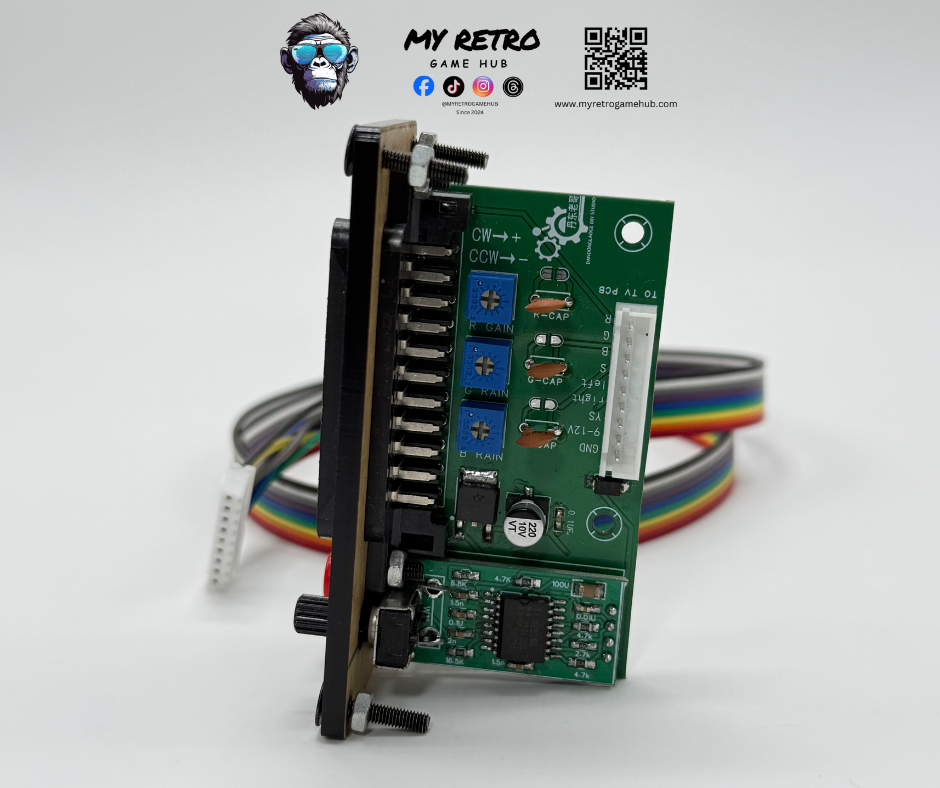

• The three blue trim pots on the board adjust RGB gain – fine-tuning brightness, contrast, and color balance.

If you want to unlock the true potential of your CRT, this RGBS mod kit is the perfect solution. With high-quality components, simple installation, and compatibility with most pre-2000 TVs and PVMs, it’s the best way to future-proof your retro gaming setup.

Please read the full description below to ensure your CRT is compatible for RGB modding before placing an order. Refunds are only provided for faulty kits — change of mind returns are not accepted.
